Self Contained Truck Air Conditioner
Product Instruction
Most self contained truck air conditioner on market with DC powered system, max cooling capacity is less than 10000BTU which is limit usage if the cabin space is bigger, or for some countries , the ambient temperature is too high, then a high cooling capacity international truck air conditioning is needed by most users.
Product Parameters
| Product Name | Self Contained Truck Air Conditioner | ||
| Model | FT-TAC-PI02 | ||
| Brand | JUKOOL | ||
| Cooling capacity | 4000W | ||
| Heating | 3000W (Optional) | ||
| Voltage | DC12V | DC24V | |
| Total current rating | ≤70A | ≤35A | |
| Evaporator air volume | 650m³/h | ||
| Condenser air volume | 1700m³/h | ||
| Compressor | Type | Totally-enclosed, DC powered and direct connecting | |
| Displacement | 18cc/r | ||
| Dimension(mm) | mono block | 1053*800*205mm | |
| Weight(kg) | air conditioner assembly | 42 | |
| Refrigerant/Charge volume | R134A/ 1.0 kg | ||
| Driven mode | Battery driven unit | ||
| Installing type | Mono-block & rooftop mounted | ||
| Suitable vehicles | All truck cabins, construction machineries and electric vehicles | ||
| Optional parts & function | Wireless controller | ||
Product Advantages and Details
Our lineup includes models featuring:
Rapid Cooling Technology
Energy Conservation Capabilities
Lightweight Construction
Quiet Operation Mode
Durability and Long Life Span

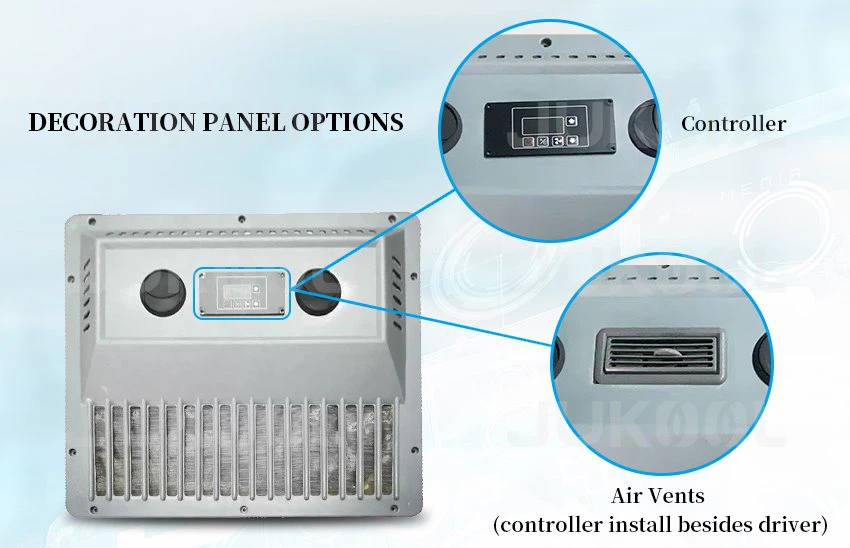

The control panel can be install on the ceiling together with air conditioner or installed beside driver for easier control, we also provide remote control, drivers can choose the most convenient way to operate the air conditioning.
Each model comes equipped with specifications tailored towards individual needs including voltage input requirements ranging between 12V – 24V depending on the application type. The dimensions vary but generally fall under the category of small enough not to impinge upon existing storage spaces inside the driver's compartment.
Application
These self contained truck air conditioners find applications primarily in the logistics sector where professionals often need to drive over vast distances in varying weather conditions. They also serve well when used in recreational activities involving campers, motorhomes, etc., which demand self-sufficiency due to remote locations.
other Options
All our products are thoroughly tested against industry standards ensuring safety compliance before they reach consumers. We hold certifications like CE, RoHS, FCC among others confirming their safe use by individuals worldwide.
