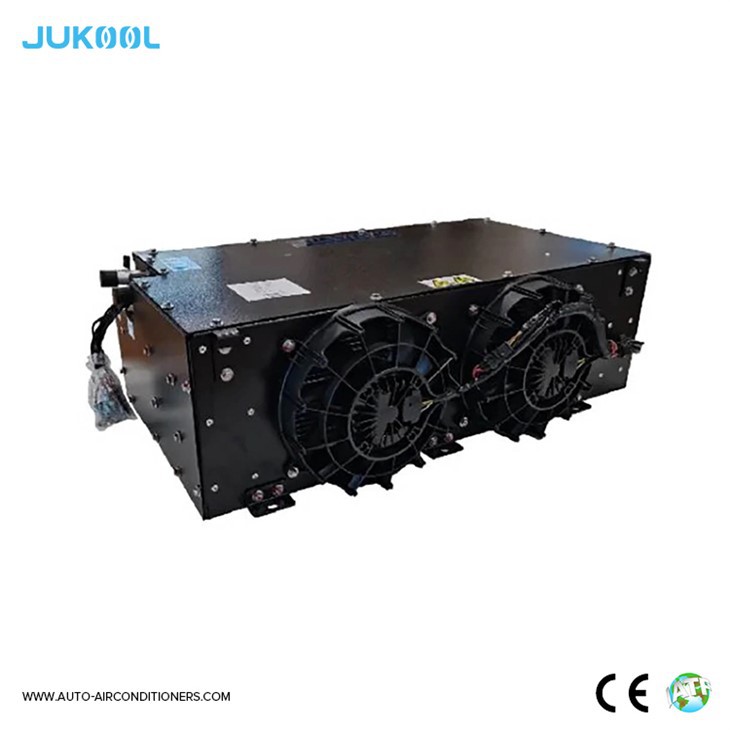

Electric Vehicle Battery Thermal Management
Battery Thermal Management System: Smart, Safe, and Performance-Driven
Our BTMS-080C electric vehicle battery thermal management system is a high-reliability solution tailored for electric light trucks, medium trucks, and light commercial vehicles. Equipped with a self-developed PID variable frequency intelligent control model, it ensures consistent and stable battery temperatures, laying a solid foundation for optimal performance. Supporting both BMS control and automatic control modes, it flexibly adapts to different vehicle electronic architectures, while its cooling, heating (optional PTC), and thermal balance modes cover all operating conditions. Compact, durable, and widely compatible, this system effectively safeguards battery life and enhances the overall reliability of commercial electric vehicles.
Technical parameters
| Product model | BTMS-080C | Dimension | L859*W572*H291mm |
| COP | ＞2.4 | Weight | <50kg |
| Refrigerant | R134a/R407c | Interface specifications | 25mm |
| High voltage range | DC380-750V | Heating PTC | 7KW(Optional) |
| Low voltage | DC24V(18-32V) | DCDC | 1KW |
| Antifreeze | 50:50 water : ethylene glycol | Expansion tank | 4L |
| Water flow | 32L/min@200Kpa | Refrigeration capacity | 8KW |
| Communication method | CAN2.0 | Minimum water inlet temperature | 10 |
| Control logic | Operation mode + target water temperature | Condensing air volume,m³/h | 4000 |
| Noise | ＜75dB(A) | Water pump head, m | 24 |
