Thermal Management Of Electric Vehicle Battery Systems
Battery Thermal Management System: Smart, Safe, and Performance-Driven
Our BTMS-100 thermal management of electric vehicle battery systems is a high-performance solution engineered for commercial electric vehicles, including light, medium, and heavy-duty trucks. Powered by a self-developed PID variable frequency intelligent control model, it delivers precise temperature regulation to keep batteries in optimal condition. Supporting both BMS and automatic control modes, it flexibly adapts to diverse vehicle electrical architectures, while its cooling, optional heating (14KW PTC), and thermal balance modes cover all operating scenarios. Reliable and widely compatible, this system safeguards battery lifespan and enhances the stable operation of commercial EVs even under high-load conditions.
Technical parameters
| Product model | BTMS-100 | Dimension | L932*W602*H291mm |
| COP | ＞2.4 | Weight | <55kg |
| Refrigerant | R134a/R407c | Interface specifications | 25mm |
| High voltage range | DC380-750V | Heating PTC | 14KW(Optional) |
| Low voltage | DC24V(18-32V) | DCDC | 1KW |
| Antifreeze | 50:50 water : ethylene glycol | Expansion tank | 4L |
| Water flow | 32L/min@200Kpa | Refrigeration capacity | 10KW |
| Communication method | CAN2.0 | Minimum water inlet temperature | 10 |
| Control logic | Operation mode + Target water temperature | Condensing air volume,m³/h | 4000 |
| Noise | ＜75dB(A) | Water pump head, m | 24 |
Related products
FTHT130
High-efficiency EV battery thermal management system with PID control & IP67 protection. Ideal for micro/light/heavy-duty EVs-boosts battery life & safety.
BTMS-050C
BTMS-050C battery thermal management system with 3 working modes & dual intelligent control. Reliable, compact solution for electric light trucks-protects battery life & enhances EV reliability.

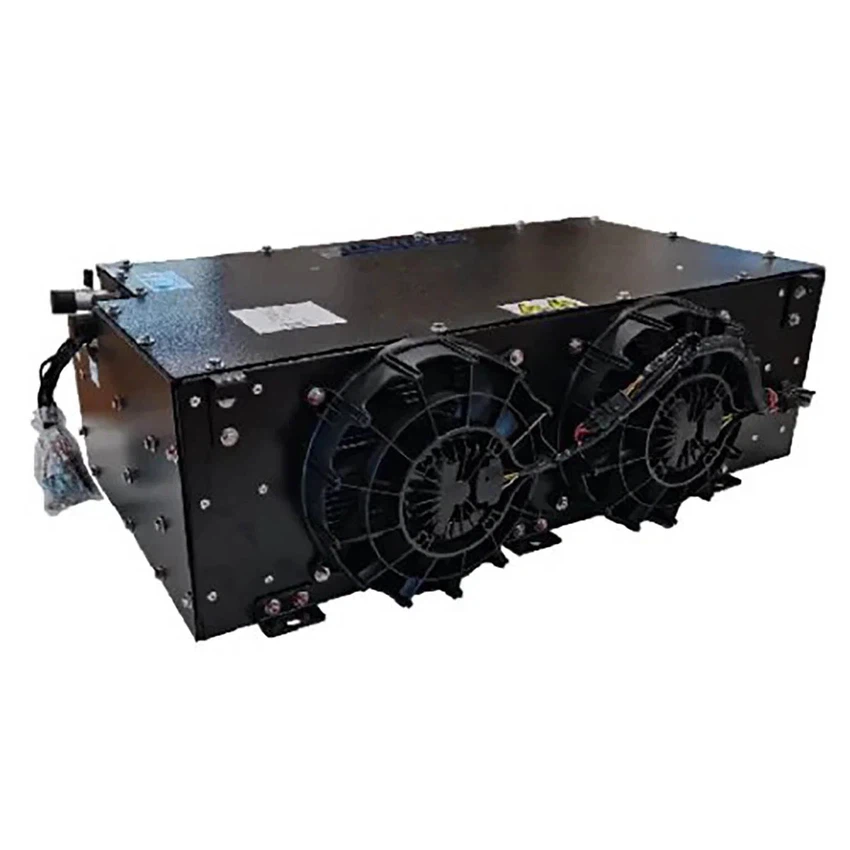

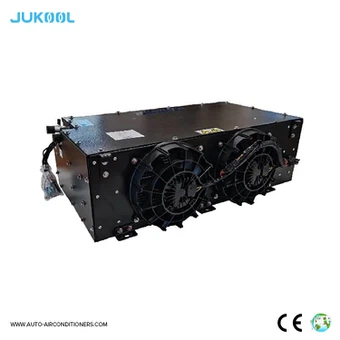

BTMS-080C
